Split30 Splitboard Bindings

Karakoram Splitboard Clips required (Click here to add), not compatible with Voile hooks

Ride Mode, Tour Mode and Heel Lock Down included

Patented   Overview // Binding Tech // Ride Mode Tech // Tour Mode Tech // Specifications

Slide background

Overview

At Karakoram we fundamentally believe that a splitboard should ride like a solid snowboard and tour like the best AT setup — no compromises. This mind set of “no compromises” helped us create the Karakoram Split30 splitboard bindings. The Karakoram splitboard bindings firmly join your splitboard together while allowing the board to flex naturally underfoot giving you unmatched riding performance and board feel. Quickly change over from riding to touring (or touring to riding) with the flip of a lever. The Split30 splitboard binding simply clips into the tour mode interface for the utmost in touring efficiency with the Tour Mode Axle System providing smooth pivots and rattle-free strides, a wide pivot support transferring power for side hilling grip, and tour mode step-in capability giving faster change overs. Make no compromises in your backcountry adventures with the Karakoram Split30 splitboard bindings.


Binding Technology

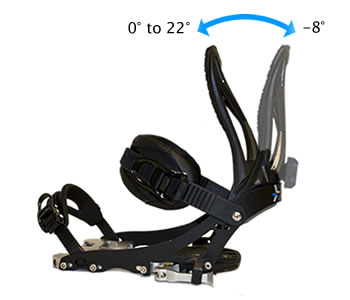

Ride-Stride Forward Lean

Ride-Stride Forward Lean

  • Quick 1/4 turn from ride mode to walk mode
  • Ride Mode: 0° to 22°, in 2° increments
  • Walk Mode: -8° allows for longer stride

Click for more info on Ride-Stride

Airflow Highback

Airflow Highback

  • Air flow design for an optimized strength to weight ratio
  • Designed specifically for splitboarding
  • Power Strap Slots
  • Medium Flex
  • Dupont Zytel ST

Open Binding Chasis

Open Binding Chasis

  • Binding can twist with torsional flex of snowboard creating uncompromised board feel

Ride Mode Technology

Bindings

Binding Bottom (highlights)

  • Wide contact points improve responsiveness between bindings and board
  • CNC machined parts have all unnecessary material removed to create the lightest splitboard binding available

Heel Lever

Heel Lever

  • Quick Release lever allows for quick and easy attachment or removal of binding to the Ride Mode Interface

Ride Mode Interface

Ride Mode Interface

  • Five attachment points create solid connection between binding and Ride Mode Interface
  • Heel stay pins push through attachment loops driving snow and ice build-up out of the way
  • Wide openings of attachment loops allow for easy alignment

Ride Mode Video

Tour Mode Technology

Sleeved Axles

Sleeved Axles

  • Independent sleeves rotate freely on a fixed through axle (similar to a bike axle) for the stiffest and smoothest touring pivot

Tour Mode Interface

Tour Mode 2 (highlighted lever)

  • Wide support cradle increases tour mode rigidity
  • Offset cradle allows snow to clear during entry
  • Quick release touring bracket allows for quickest and simplest transition
  • No removable parts ensures you won’t loose any key components

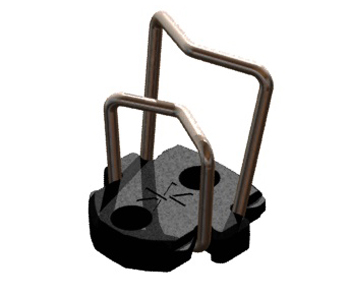

Heel Lock & Dual Height Riser

Dual Risers 350 px

Tour Mode Video

Specifications

  • Includes: Bindings, Ride Mode, Tour Mode w/ heel lockdown
  • Binding Weight: 800g per side (medium binding)***
  • Stack Height: 14.5mm (.57 in)
  • Change Over Time: less than 2 minutes (includes removing skins, collapsing poles, packing gear)
  • Removal of splitboard bindings not required to change from snowboard to skis
  • Materials: Aluminum, Stainless Steel, Dupont Zytel
  • No loose parts or pins
  • Mounting: existing production splitboard bindings hole pattern or comes with a DIY mounting template
  • Karakoram board clips required, NOT COMPATIBLE with Voile Chinese Hooks

***production weight may vary
